Body
- Body: Alder
- Body Finish: Gloss Polyester
- Body Material: Alder

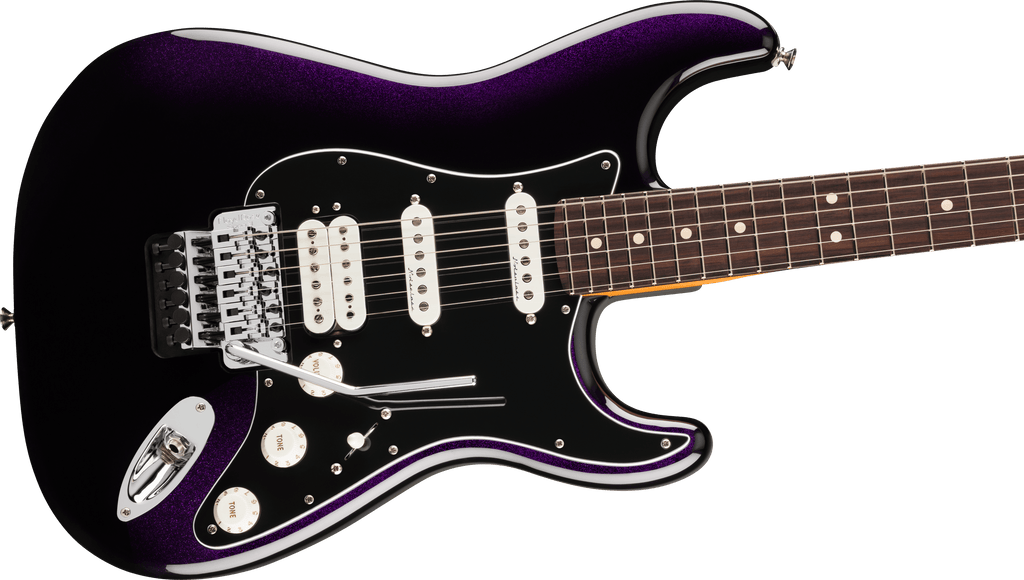

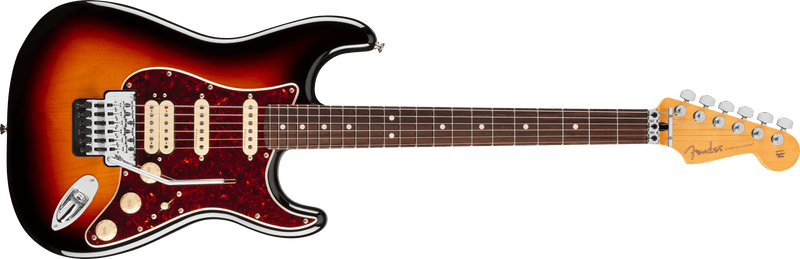

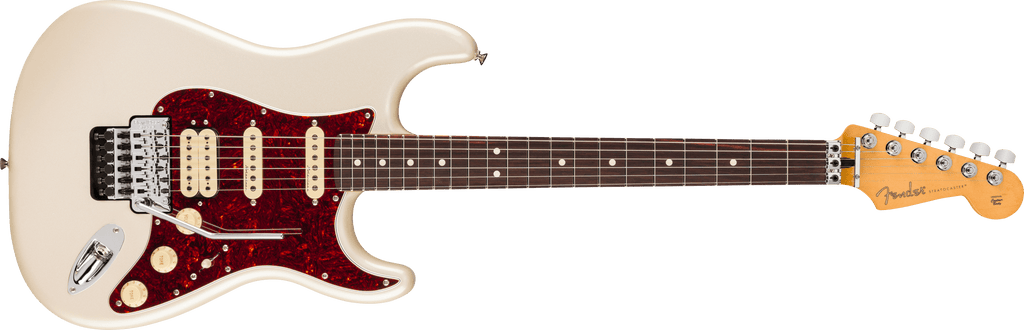

- Body Shape: Stratocaster®

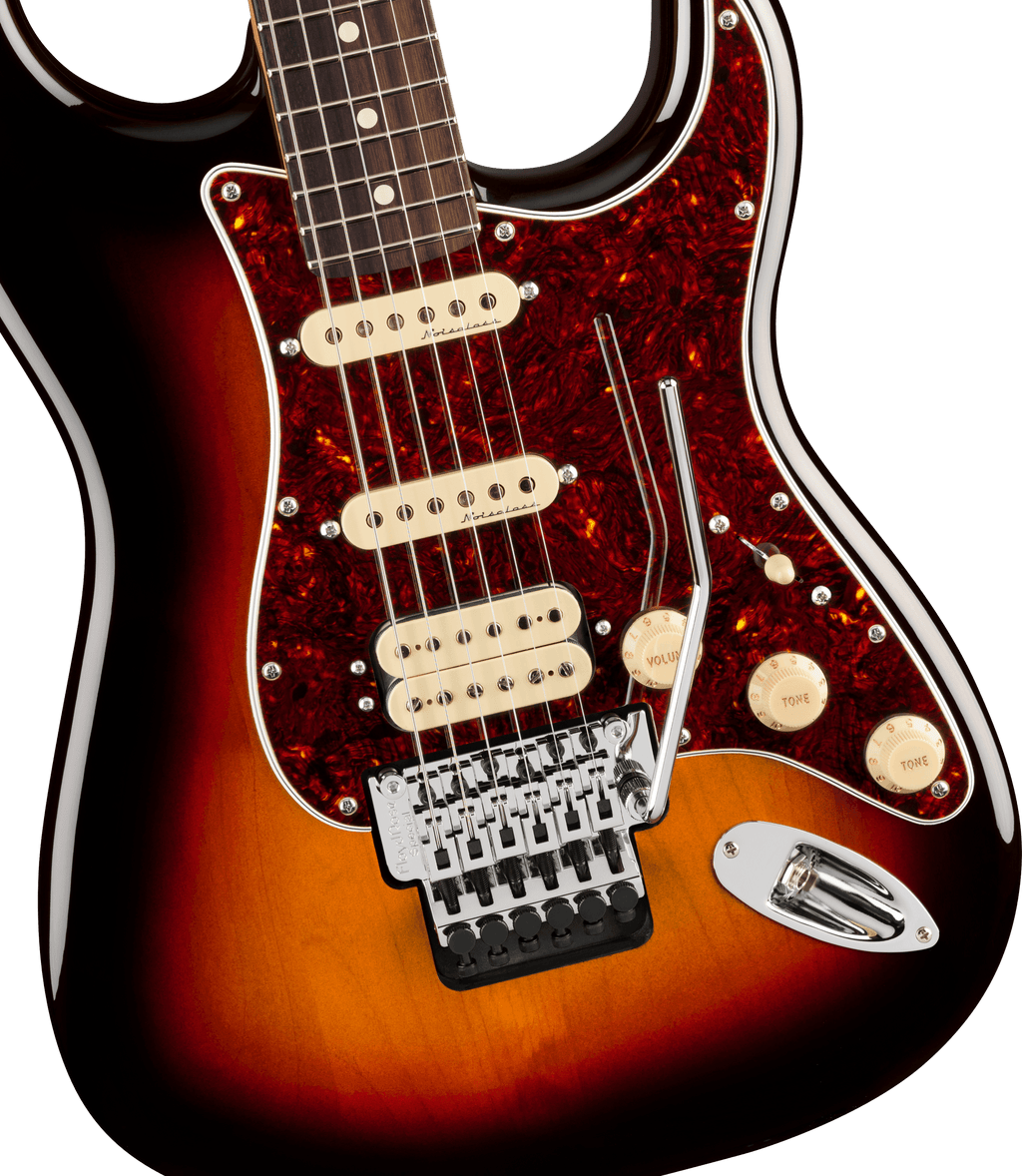

ELECTRONICS
- Auxiliary Switching: Push/Pull Pot On Tone 2 For Coil Split on Humbucking Pickup
- Bridge Pickup: Player II Modified Humbucker
- Controls: Master Volume with Treble-Bleed, Tone 1. (Neck/Middle Pickups), Tone 2. (Bridge Pickup)
- Middle Pickup: Player II Noiseless™ Strat®
- Neck Pickup: Player II Noiseless™ Strat®
- Pickup Configuration: HSS
- Switching: 5-Position Blade: Position 1. Bridge Pickup, Position 2. Bridge and Middle Pickup, Position 3. Middle Pickup, Position 4. Middle and Neck Pickup, Position 5. Neck Pickup
Hardware
- Bridge: Floyd Rose® Special Double-Locking Tremolo
- Control Knobs: Aged White Plastic
- Hardware Finish: Nickel/Chrome

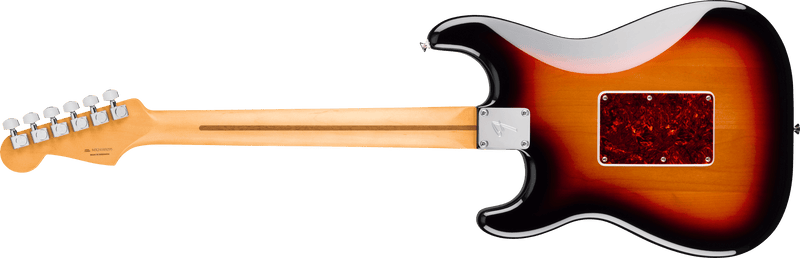

- Neck Plate: 4-Bolt with "F" Logo

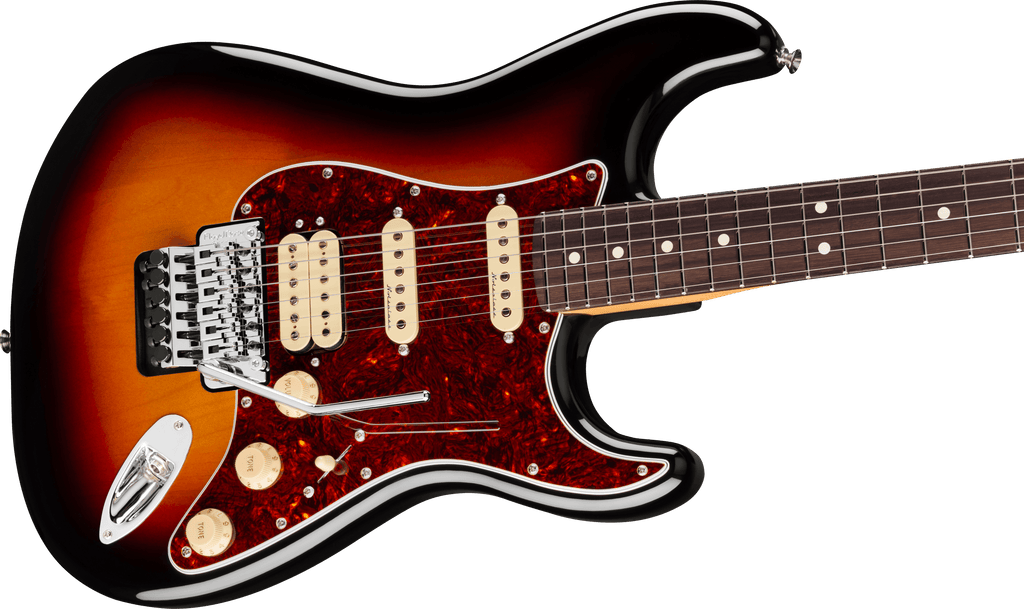

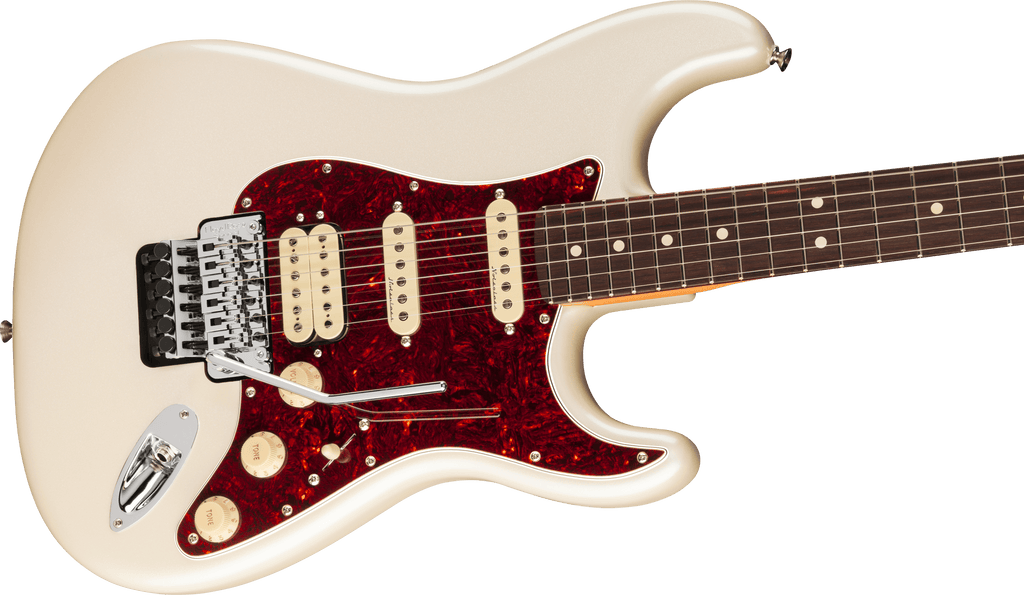

- Pickguard: 4-Ply Tortoiseshell
- Pickup Covers: Aged White
- Strap Buttons: Vintage-Style
- String Trees: Modern Dual-Wing
- Strings: Fender® USA 250L Nickel Plated Steel (.009-.042 Gauges), PN 0730250403
- Switch Tip: Aged White

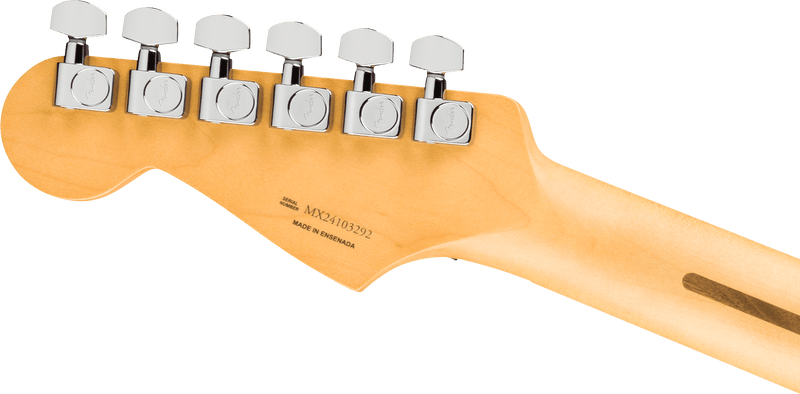

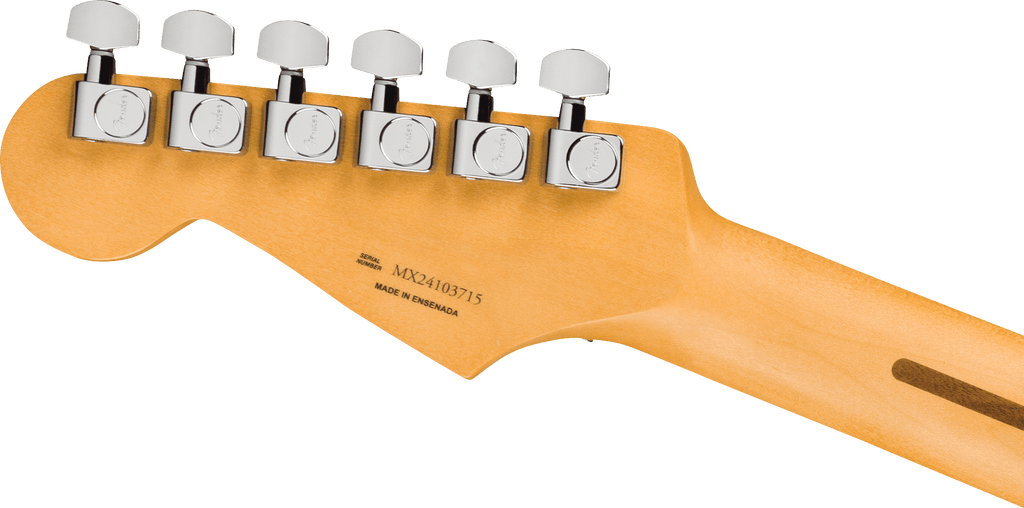

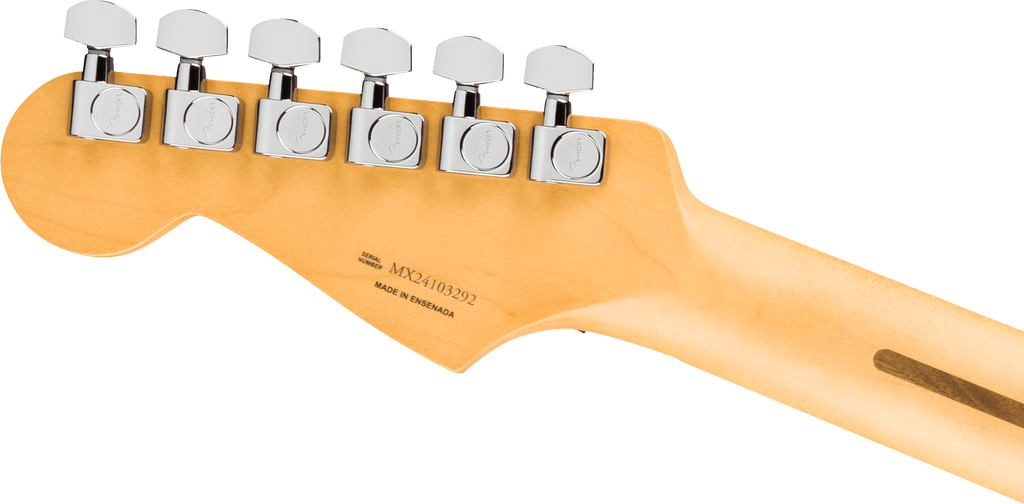

- Tuning Machines: Standard Cast/Sealed
Measurements
- Fret Size: Medium Jumbo
- Scale Length: 25.5" (64.77 cm)

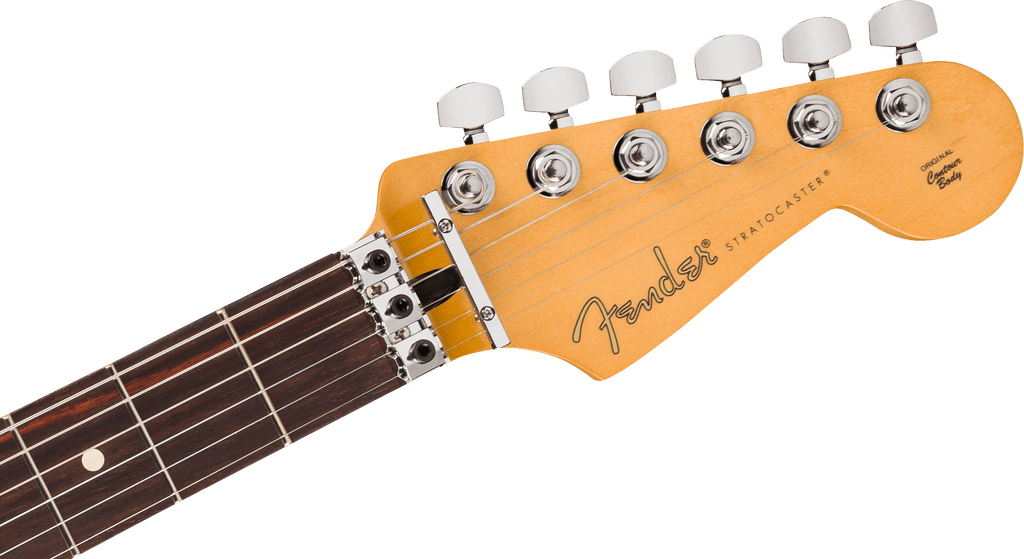

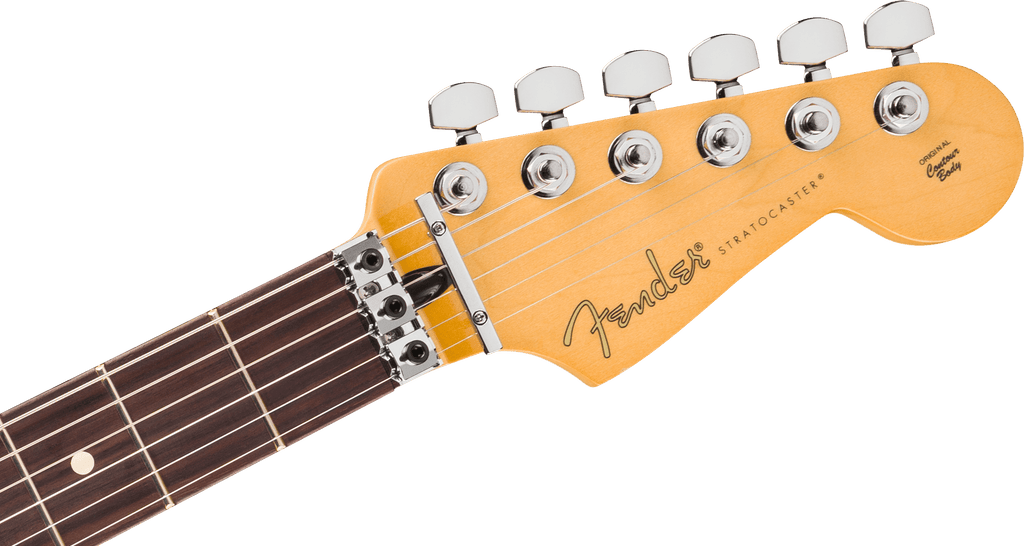

Neck
- Fingerboard Material: Rosewood
- Fingerboard Radius: 12" (305 mm)
- Neck Construction: 4-Bolt Standard
- Neck Finish: Satin Urethane
- Neck Material: Maple
- Neck Shape: Modern "C"
- Number of Frets: 22
- Nut Material: Floyd Rose® R3 Locking
- Nut Width: 1.6875"
- Position Inlays: White Dot
- Side Dots: White
- String Nut: Floyd Rose® R3 Locking
- Truss Rod: Single Action, Head Adjust
