Korg Pitchblack Pro

SKU: 002-05057

3,600 ฿ 4,000 ฿

An ultra-lightweight, thin rack-mount tuner with the highest visibility of any“3D” tuning meter

Since producing the world's first rackmounted tuner, the DT-1pro which appeared in 1987, Korg has continued to produce classic models that define the era, including the DTR-1/DTR-2 in 1994 and the DTR-1000/DTR-2000 in 2002. Now in 2013, Korg unveils its latest rackmount model. The pitchblack Pro features a new 3D visual meter that's so beautiful you'll think of it as an aspect of your stage performance. The three-dimensional expression of light delivers an unprecedentedly visual element. Although it's in a rackmount form factor, the body is ultra-lightweight and slim, allowing it to be used anywhere. This is a new generation of rackmount tuner that every guitarist/bassist with professional aspirations should experience.

Pitchblack Pro - Introduction Movie



  • 19-inch 1U rack-mount tuner for guitar/bass
  • Large“3D”visual meter for unprecedented visibility
  • Lightweight, thin, removable; not limited to rack installation
  • Three meter display modes: regular, strobe, and half-strobe
  • Cable Checker warns of broken or shorted cables
  • Buffered output minimizes any change in audio quality
  • Mute function lets you tune silently
  • Part of KORG’s “Custom Shop” series, a mark of ultimate quality

“Custom Shop,” the mark of ultimate quality

เครื่องตั้งสาย จูนเนอร์ Korg Pitchblack Pro

KORG tuners have a 40-year history that began with the world’s first needle-style tuner. While we have produced many different types of tuners, including tuners with unrivaled precision and tuners with epoch-making functionality, these products were made possible by KORG’s unwavering commitment to quality. In other words, our attitude of sincerely listening to the voice of the user, our revolutionary ideas, and our high level of technological ability are what underlie the long history of KORG tuners.

Now, KORG announces a new lineup aimed at achieving even greater accomplishments. The name “Custom Shop” designates this tuner as a flagship model that is representative of KORG’s highest levels of technology. Its design features a beautiful meter displayed by a CMD panel, ultra-precision detection, and careful attention paid to appearance and feel. KORG’s high technological ability and commitment to quality have taken shape as the “Custom Shop” name.

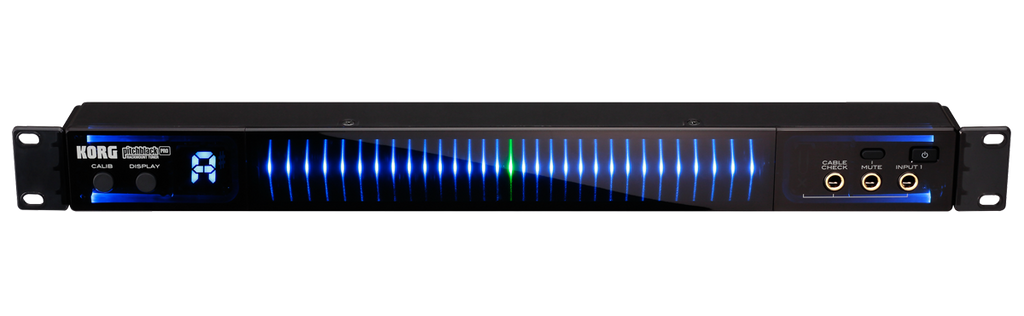

19-inch rack-mount tuner for guitar/bass

เครื่องตั้งสาย จูนเนอร์ Korg Pitchblack Pro

The Pitchblack Pro is a rackmount tuner that's easy to see even from a distance, allowing you to tune confidently. It's ideal not only on stage but also during rehearsals or recording. The crisp lights in your rack will attest to your professionalism.

Large 3D visual meter ensures unprecedented visibility.

The newly-developed tuning meter provides a revolutionary visual effect. In addition to the powerfully illuminated color LEDs that provide unparalleled brightness, the special design with treated acryl allows a three-dimensional view of the light, from the surface of the source all the way into its depths. This means that from any distance or angle, discrepancies or change in pitch will be instantly obvious. The Pitchblack Pro brings the guitarists/bassist a new dimension of tuning experience.

เครื่องตั้งสาย จูนเนอร์ Korg Pitchblack Pro

Lightweight, thin, and removable. Also usable outside a rack.

While the previous DTR-1000/DTR-2000 models weighed 1.4 kg, the pitchblack Pro is astoundingly light at 363 g. The depth has also been dramatically reduced from 113 mm to 49 mm, allowing it to be installed in an effect pedalboard. The rackmount adapters on the left and right can be attached or detached at a touch, and can be attached to the bottom of the unit to serve as a stand. The unit can also be used in a variety of situations other than in a rack; you can simply set it in a desired location, or attach it to a floor monitor.

เครื่องตั้งสาย จูนเนอร์ Korg Pitchblack Pro

Three meter display modes

There are three display modes available for the large meter.

  • 1. Regular Meter mode
    As when using a needle-type meter tuner, tune the string so that the LED in the center of the meter is lit up. The illuminated LED will move to the right if the string is sharp, or toward the left if the string is flat. This process is intuitively easy to grasp.
  • 2. Strobe Meter mode
    Tune the string so that the LED meter illumination stops flowing. The meter illumination will flow from left to right if the string is sharp or from right to left if the string is flat.
  • 3. Half Strobe Meter mode
    Tune the string so that the LED meter illumination stops flowing and only the center LED is lit up. The right side of the LED meter strobes if the string is sharp; the left side strobes if the string is flat. When the pitch is correct, only the center LED will be lit up.

Cable Checker function warns of broken or shorted cables.

เครื่องตั้งสาย จูนเนอร์ Korg Pitchblack Pro

Korg's revolutionary Cable Checker function is built into the Pitchblack Pro; simply connect the two ends of your monaural phone cable to the INPUT 1 jack and the CABLE CHECK jack and the display will tell you whether the cable is broken.
This is a convenient way to avoid problems on stage or in the studio.

Buffered output minimizes any change in audio quality.

The Pitchblack Pro is designed with a buffered output to minimize any change or additional noise in the audio input signal. There's also a Mute function that lets you tune without producing sound from the OUTPUT jack.
The MUTE jack allows a foot switch to turn mute on/off, for convenient tuning between songs during a live performance.



Specifications

Tuning:
12 Note Equal Temperament
Detection Range:
E0 (20.60 Hz) ~ C8 (4186 Hz), Sine Wave
Calibration Range:
A4 = 436-445 Hz (1 Hz steps)
Detection Accuracy:
+/- 1 cent
Display Mode:
Regular / Strobe / Half Strobe
Input impedance:
1 M Ω (when tuner is on)
Connectors:
Front Side:
Input 1 (mono 1/4" jack) for Guitar /Bass
Mute (mono 1/4" jack)
Cable Check (mono 1/4" jack)

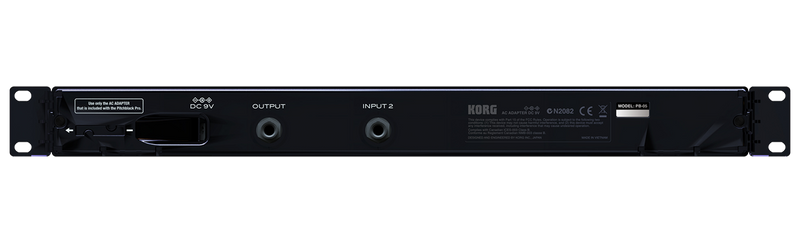

Rear Side:
Input 2* (mono 1/4" jack)
*This jack is intended for use with the line output from an effect unit or keyboard; this cannot be used simultaneously with the INPUT 1 jack Output (mono 1/4" jack) DC IN (9V)
Power supply:
DC 9V, AC adapter(KA350)
Dimensions:
(W x D x H)
Tuner Only: 430 x 49 x 44 mm / 16.93 x 1.93 x 1.73 inches (including protrusions)
When used with the rackmount adapters: 482 x 49 x 44 mm / 18.98 x 1.93 x 1.73 inches (including protrusions)
Weight:
363 g / 12.80 Oz. (Tuner Only)
Accessories:
AC adapter, Screw x 4, Washer x 4, Rack mounting adapter x 2
