Charvel Pro-Mod DK24 HH 2PT CM QM
SKU: F296-9411-521
Charvel® turns modern high performance on its head with the new Pro-Mod DK24 HH 2PT CM QM, a brazen instrument for the progressive guitarist searching for an unparalleled spectrum of sound.
Featuring a sculpted shredder’s cut heel and a scalloped lower back bout for easy upper access to the fingerboard, the alder body in the classic Dinky™ style is completed with an elegant quilt maple top dressed in a captivating Chlorine Burst finish. The bolt-on caramelized maple “speed” neck has graphite reinforcement, silky-smooth hand-rubbed urethane back finish, heel-mount truss rod adjustment wheel and Luminlay® side dots. Its 12”-16” compound radius caramelized maple fingerboard features comfortable rolled edges, 24 jumbo frets, pearloid dot inlays and Graph Tech® TUSQ® XL nut.

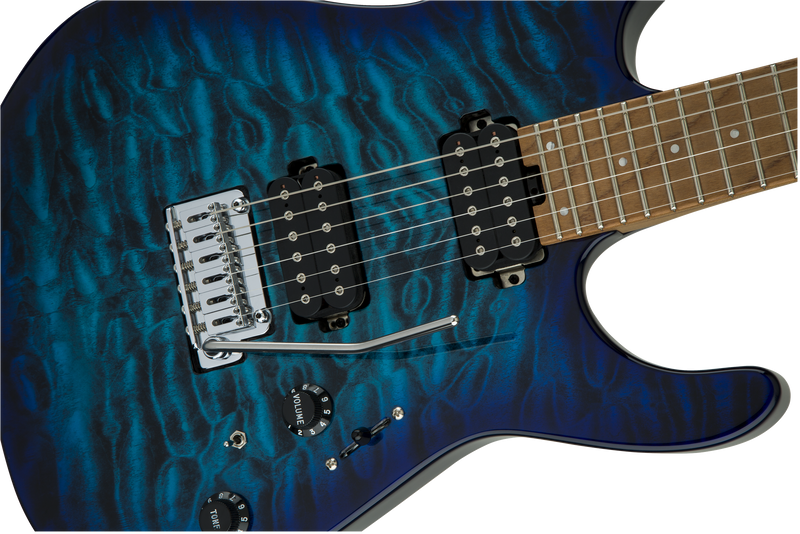

Brimming with versatility courtesy of the mini two-way toggle switch for series and parallel, this axe offers an HH pickup configuration consisting of a direct mount Custom Seymour Duncan® Full Shred SH-10B bridge pickup and direct mount Seymour Duncan® Alnico II Pro APH-1N neck pickup. The bridge pickup radiates a crisp top-end with low-end articulation, while the neck pickup has incredible range with soaring highs and silky lows.
Blending sophisticated style with assertive tone, the DK24 HH 2PT CM QM also offers premium modern features such as a five-way blade pickup switch, Stratocaster®-style skirt knobs for the volume (with 500K EVH® Bourns® low-friction potentiometer) and no-load tone controls, Gotoh® Custom 510 recessed tremolo bridge, locking tuners, chrome hardware and more.
SPECS
- Model Number: 2969411521
- Series: Pro-Mod
- Color: Chlorine Burst
- Number of Strings: 6
- Orientation: Right-Hand
- Bridge Pickup: Seymour Duncan® Custom Full Shred™ SH-10B
- Neck Pickup: Seymour Duncan® Alnico II Pro™ APH-1N
- Pickup Color: Flat Parchment
- Controls: Volume (with 500K EVH® Bourns® Low Friction Potentiometer), No-Load Tone
- Pickup Switching 5-Position Blade & 2-Way Mini Toggle: (Pos 1: Bridge Pickup, Pos 2: Both Outer Coils, Pos 3: Bridge & Neck Pickup, Pos 4: Both Inside Coils, Pos 5: Neck Pickup; 2-Way Mini Toggle Down/All Series; 2-Way Mini Toggle Up/All Parallel
- Pickup Configuration: HH
- Body Finish: Gloss
- Body Shape: Dinky™
- Body Material: Alder
- Body Top: Quilt Maple
- HARDWARE
- Bridge: Gotoh® Custom 510 Tremolo
- Hardware Finish: Chrome
- Tremolo Arm: Gotoh®

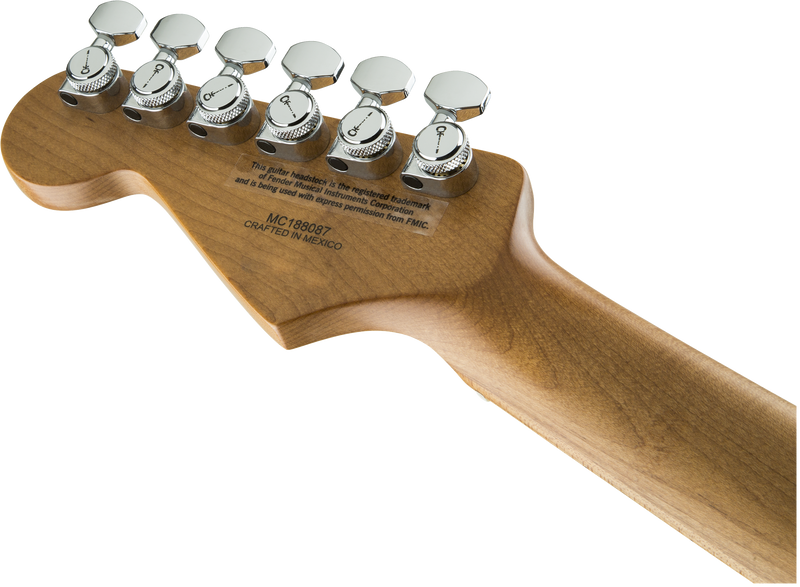

- Tuning Machines: Charvel®-Branded Die-Cast Locking
- Pickguard: None
- Control Knobs: Strat®-Style Skirt
- Switch Tip: Parchment
- Neck Material: Caramelized Maple
- Neck Construction: Bolt-On with Graphite Reinforcement
- Neck Finish: Hand-Rubbed Urethane
- Neck Shape: Speed Neck with Rolled Fingerboard Edges
- Neck Binding: None - Rolled Fingerboard Edges
- Scale Length: 25.5" (64.77 cm)
- Fingerboard Radius: 12"-16" Compound Radius (304.8 mm to 406.4 mm)
- Fingerboard Material: Caramelized Maple
- Number of Frets: 24
- Fret Size: Jumbo
- Nut Material: Graph Tech® TUSQ® XL
- Nut Width: 1.6875" (42.86 mm)
- Position Inlays: 4mm Pearloid Dot
- Truss Rod Nut: Heel-Mount Truss Rod Adjustment Wheel

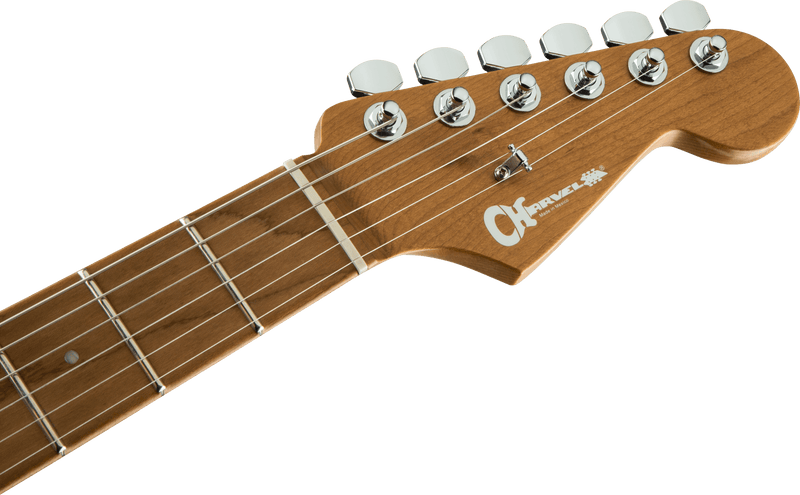

- Headstock: Licensed Fender® Stratocaster®
- Neck Plate: None - 4-Bolt Sculpted Heel
- MISCELLANEOUS
- Strings: Nickel Plated Steel (.009-.042 Gauges)
- Strap Buttons: Standard
- Other Features: Luminlay® Side Dots
